"Custom Wrought Iron Railings in Standard Sections"

                                  *** Call 1-800-667-4766 for your quote ***
Rails
  -36 or 42 High

Openings
  -Either 3" or 4"

Matching
    Gates
Level and
    Descending


Three Styles
  -Curved Bars
  -Twisted Bars
  -Straight Bars

Click On Any Picture To Enlarge

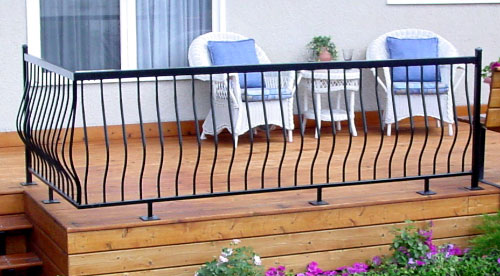

Curved Bars

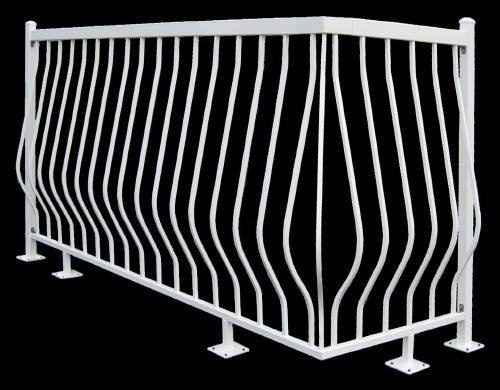

Powder Coated White
Click for Information

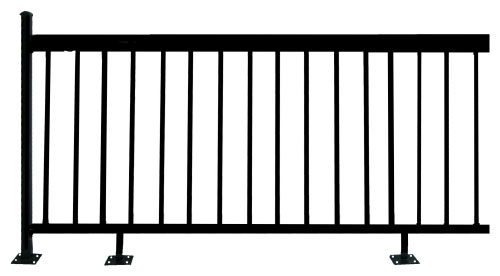

Straight Bars

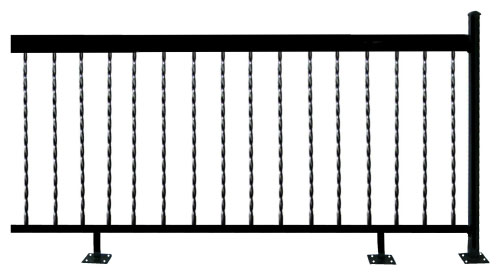

Twisted Bars
Descending Rails


1. Click Here For Railing Specifications

2. Click Here For Railing Installation Tips

3. Primed Black (paint your favorite color)

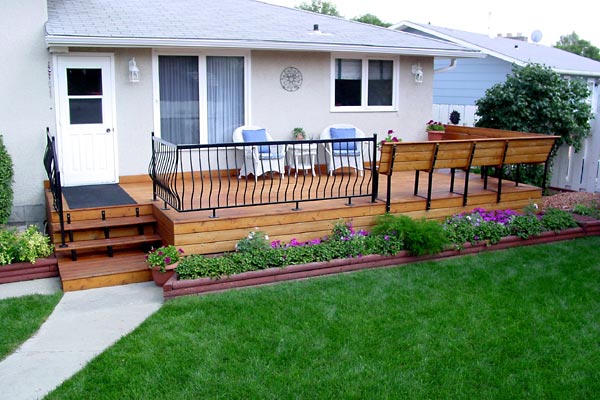

4. Click Here For Customer Pictures




5. Click Here To Compare

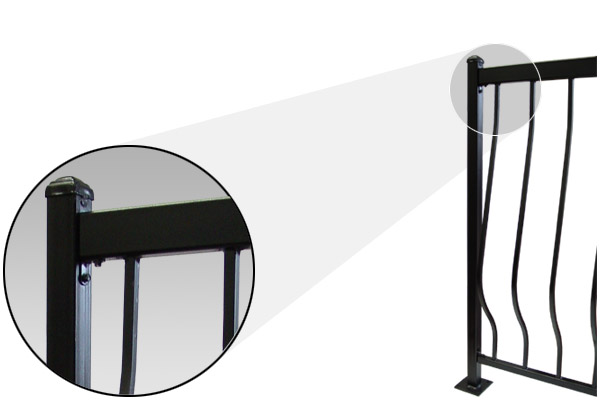

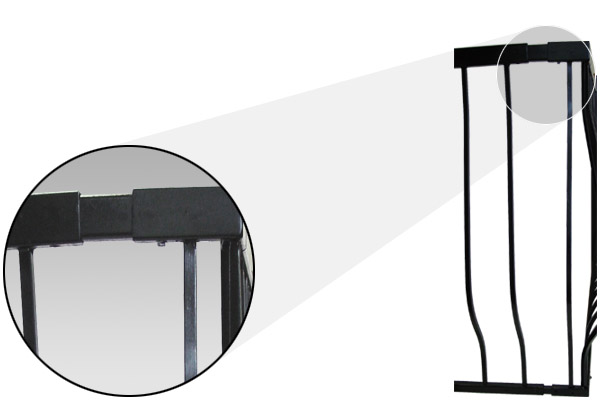

Slip & Lock Railings
(Click Here To See Slip & Lock Feature)

This railing is available in 36, 49, 72 and 99 inch long sections that slip together and are then locked into place with tech screws. These sections may be cut to the length required before being slipped together - thus creating any length of solid welded railing required.

With a few accessories like the Deluxe Corner, End Post, Quick Corner, Wall Tabs and Gate, it is easy to create a Custom Railing Effect, for less that half the cost of a custom railing and a third less than the cost of the bolt together railings on the market today.

The Classic Deck & Balcony Rail is available in both 36 and 42 inch heights. The Classic Rail and Accessories are finished with a black primer coat, which may be finished in any color using an exterior enamel.



36 INCH LONG LEVEL SECTIONS
Height Weight Curved Bars Straight Bars / Twisted Bars
Stock No. Cost per Section Stock No. Cost per Section
36" 36 lbs. CR36-36 $90.25 CR36-36S/T* $86.00
42" 40 lbs. CR36-42 $102.50 CR36-42S/T $97.00
*NOTE: CR36-36S has all straight bars / CR36-36T has all twisted bars.


49 INCH LONG LEVEL SECTIONS
Height Weight Curved Bars Straight Bars / Twisted Bars
Stock No. Cost per Section Stock No. Cost per Section
36" 41 lbs. CR49-36 $106.75 CR49-36S/T* $101.25
42" 44 lbs. CR49-42 $115.50 CR49-42S/T $110.00
*NOTE: CR49-36S has all straight bars / CR49-36T has all twisted bars.


72 INCH LONG LEVEL SECTIONS
Height Weight Curved Bars Straight Bars / Twisted Bars
Stock No. Cost per Section Stock No. Cost per Section
36" 57 lbs. CR72-36 $150.70 CR72-36S/T* $143.00
42" 62 lbs. CR72-42 $161.75 CR72-42S/T $154.00
*NOTE: CR72-36S has all straight bars / CR72-36T has all twisted bars.


99 INCH LONG LEVEL SECTIONS
Height Weight Curved Bars Straight Bars / Twisted Bars
Stock No. Cost per Section Stock No. Cost per Section
36" 76 lbs. CR99-36 $200.75 CR99-36S/T* $190.50
42" 83 lbs. CR99-42 $215.75 CR99-42S/T $205.25
*NOTE: CR99-36S has all straight bars / CR99-36T has all twisted bars.

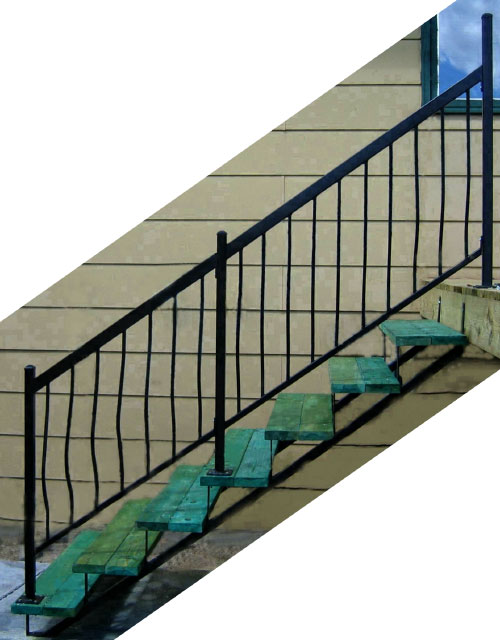

Descending Railings

* Descending Classic Railings have many "Standard" & "Special Order" Sizes.

* STANDARD SIZES  are for stairs having 7", 7 " or 8" Risers with either a 9" or 10 " Run.

* SPECIAL ORDER SIZES  are for stairs having:
6½", 6¾", 7¼" or 7¾" Risers with either a 9", 10½" or 12" Run, or
7", 7½" or 8" Risers with a 12" Run.

* RAILINGS  are priced by the side with a post on the Bottom Step with bolt on intermediate legs.

Step Size Railing
(curved bars)
Railing
(straight bars)
Railing
(twisted bars)
Standard Sizes
(each side)
Standard Sizes
(each side)
Standard Sizes
(each side)

1 Step / 2 Riser $65.50 $65.00 $65.00
2 Step / 3 Riser $90.75 $90.00 $90.00
3 Step / 4 Riser $111.75 $111.00 $111.00
4 Step / 5 Riser $138.50 $137.00 $137.00
5 Step / 6 Riser $159.75 $159.00 $159.00
6 Step / 7 Riser $223.25 $221.00 $221.00
7 Step / 8 Riser $249.75 $248.00 $248.00
8 Step / 9 Riser $276.50 $274.00 $274.00
9 Step / 10 Riser $298.50 $296.00 $296.00
10 Step / 11 Riser $319.25 $316.00 $316.00
11 Step / 12 Riser $388.00 $384.00 $384.00
12 Step / 13 Riser $414.50 $411.00 $411.00
13 Step / 14 Riser $436.00 $432.00 $432.00
14 Step / 15 Riser $457.25 $453.00 $453.00
15 Step / 16 Riser $478.75 $474.00 $474.00
16 Step / 17 Riser $552.50 $547.00 $547.00
17 Step / 18 Riser $574.00 $569.00 $569.00
18 Step / 19 Riser $595.50 $590.00 $590.00
19 Step / 20 Riser $611.25 $611.00 $611.00
20 Step / 21 Riser $638.25 $632.00 $632.00
Need Help??? CLICK HERE For Our Help/Order Desk.
Planks, Freight & Taxes (if any) extra.

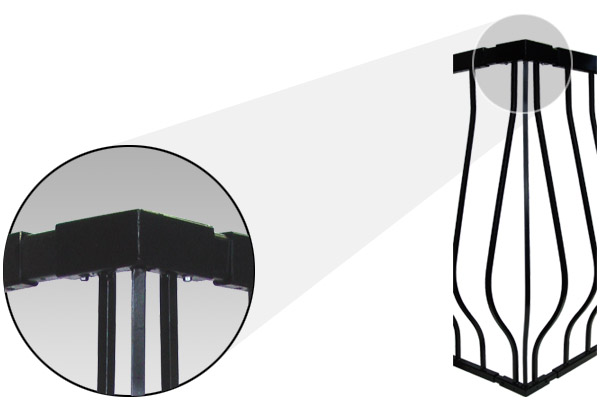

Deluxe Corner


Enlarge Photo
This is truly the Deluxe way to turn a 90 corner. The Deluxe Corner uses eight inches of railing to turn the corner. When you use this corner, deduct 4 inches each way from railing length needed.


Height Stock No. Mass Price
36 in. CRDC-36 10 lbs. $46.25
42 in. CRDC-42 11 lbs. $49.50



End Post


Enlarge Photo
The End Post is the ideal way to start or end a run of deck or balcony railing. This post is 1½ square tubing with a 4x4 base plate with 4 holes to bolt it down.


Height Stock No. Mass Price
36 in. CRPT-36 10 lbs. $30.25
42 in. CRPT-42 11 lbs. $32.00



Quick Corner


Enlarge Photo
This is a quick way to make a 90 corner, simply attach this 1 inch square post to the end of your railing and then a new section at 90. When you use this corner, deduct ½ inch each way from railing length needed.


Height Stock No. Mass Price
36 in. CRQC-36 4 lbs. $5.50
42 in. CRQC-42 4 lbs. $5.50

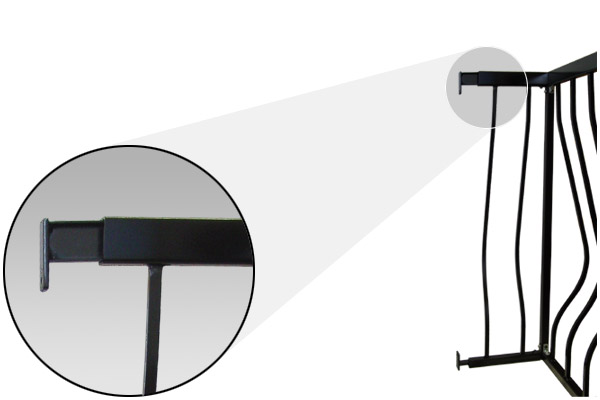

Wall Tabs


Enlarge Photo
The Wall Tabs slip into the end of the Classic Rail allowing you to bolt the railing to the wall or to a post. Your set of wall tabs includes one for the top rail as well as one for the bottom rail. They fit either heights of rails.


Height Stock No. Mass Price
36 & 42 in. CRWT-00 1 lbs. $5.50

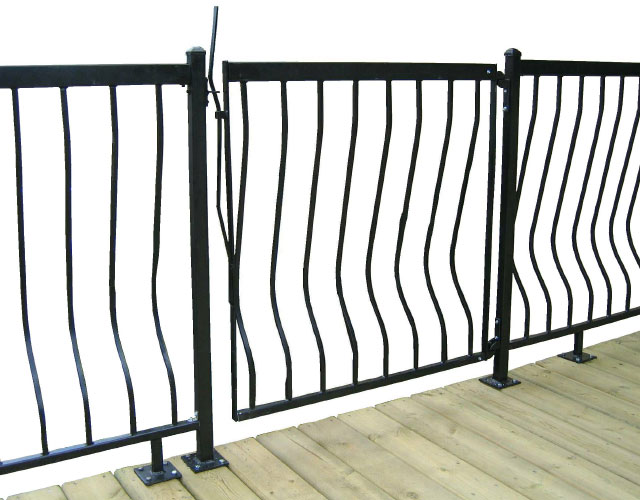

Gates


Enlarge Photo

Slip & Lock Gates are available for both 36" and 42" high railings. You get a 49 " section of fence that you must cut to the proper length ( 5" shorter than the opening between the posts in your railing). Then you slip the hinge bar on one end and the latching bar on the other and lock them into place with tech screws. Then mount the hinges on one post and the latch on the other. For safety reasons the gate must only swing in onto the deck. All hardware supplied.


Height Stock No. Mass Price
36 in. CRGTE-36 48 lbs. $176.00
42 in. CRGTE-42 52 lbs. $187.00

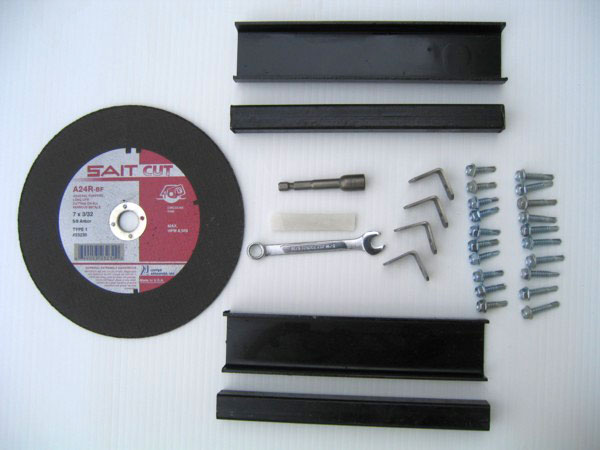

Installation Kit


Enlarge Photo
Save time looking for these items required to complete your installation. Enlarge picture to see breakdown of items.

Stock No.: CRKIT-00 ................ $17.25
